Project type: Test equipment assembly
Client: Germany
Year: 2018

Climate chamber test bundles

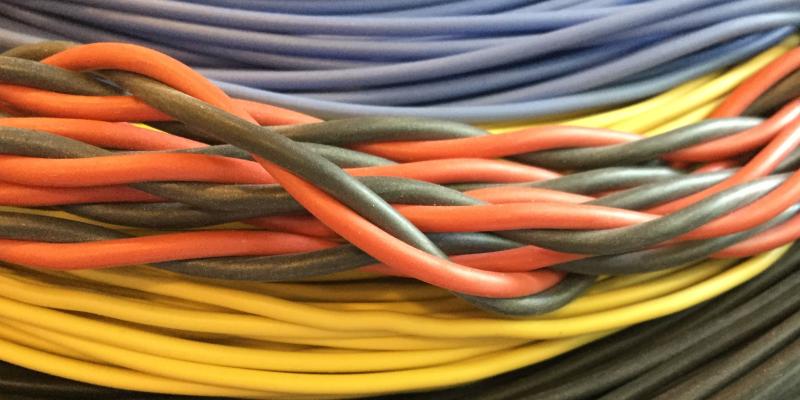

Harnesses used to connect Automotive device under tests to test adapter located outside of climate chamber. Harnesses are 7 meters long, protected by polyester braided sleeve, each connector is marked, half of the harness is sufficient to operate up to 150 Celsius degrees.

As flexible company Yerlab provide also shorter version of the harnesses for testing department which have been used during design phase outside of the testing laboratory. Assembly for all devices took 3 weeks, some of the elements were machine made, rest of the work was manual. Yerlab purchase all components according to customer requirements.
